Single Room Waste Heat Recovery Unit , Heating And Ventilation Energy Recovery Unit

  • Single Room Waste Heat Recovery Unit , Heating And Ventilation Energy Recovery Unit
  • Single Room Waste Heat Recovery Unit , Heating And Ventilation Energy Recovery Unit
  • Single Room Waste Heat Recovery Unit , Heating And Ventilation Energy Recovery Unit
Place of Origin China
Brand Name YIBU
Certification CE / SGS / UL
Model Number RG
Minimum Order Quantity 1
Price Negotiation
Packaging Details wooden case or film plastic wrapped
Delivery Time 30days ,depending on the size of the machine
Supply Ability 30 set/montth

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size The Machine Is Customized ,we Can Do It According To Customer Requirment Certicate CE ,ISO9001&14001
Material SUS304 Or 316L Feature Low Temperature Heat Energy
Name Mechanical Heat Recovery Unit Power Customized
Highlight

heat recovery ventilation unit

,

mechanical heat recovery unit
Leave a Message
Product Description



Waste heat recovery system



Product introduction:
YIBU production line drying with efficient heat exchanger of waste heat recovery: Ultra clean situations, effective benefit at 200 ºC drying line exhaust, with 165 ºC fresh air into the oven to reduce oven electric heater power consumption;

Product advantage:
1. thermal efficiency is as high as 80%;
2. Full automatic control, a key to start, real-time display operation parameters;
3. The appearance is mirror design, beautiful, generous, grade;
4. Heat exchanger production process requirements to the clean production;





Working principle

The wet air enter into the heating area from the bottom of the equipment.

After the bottom of hot pipe absorb the heat, and the working medium in the hot pipe will be evaporated, and absorb Evaporated heat from the wet air . after evaporation , the steam will go up to the top of the hot air , meanwhile , it can be pre-condensed ,and release the potential heat to the hot air radiating area . and the condense will back return by the gravity heavy , and continuously receive heat , and repeat delivering the heat from the heating area to the heat radiating area,and heat the fresh for waste heat recovery .

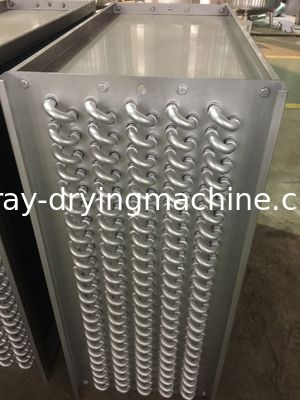

Waste Heat Recovery Heat Exchanger
