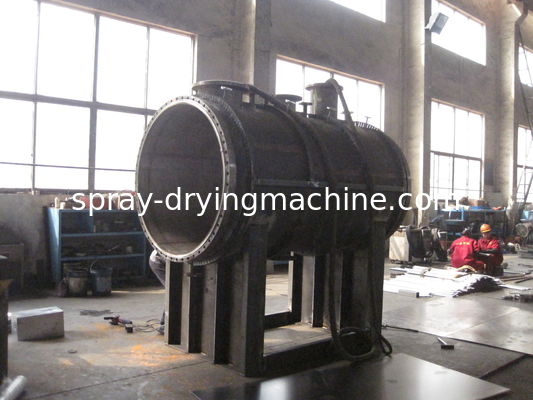

Hollow Vacuum Oven Drying Machine , Heavy Duty Freeze Dried Food Machine
| Place of Origin | China |
|---|---|
| Brand Name | YIBU |
| Certification | CE / UL / SGS / EAC / CR – TU |
| Model Number | ZPD |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Woodencase |
| Delivery Time | 10 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 SETS PER MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Metal Material | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source | Steam / Hot Water / Thermal Oil |
|---|---|---|---|
| Temp | 100-300degree | Name | Vacuum Drying Equipment |
| Density | Customized | Vacuum Degree | Customized |
| Highlight | vacuum drying equipment,vacuum spray dryer,hollow vacuum oven drying machine |
||
Product Description
ZPD Harrow Vacuum Drying Machine (Vacuum dryer ) (Harrow vacuum dryer )( Harrow vacuum drying machine ,Harrow cooling machine )
ZPG Series Vacuum Rotary Drier
Rotary Drier
1.Stirring device
2.Suitable for irritative,toxic or explode material
3.Harrow type Vacuum Dryer
WORKING PRINCIPLE
ZPG Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced technology of harrow dryer.
The moister of wet material will be evaporated by heat transmission. The stirrer with blade will remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
Brief introduction Rotary Drier
Vacuum Harrow Dryer has a simple instruction, easy to operate, the use of long cycle, stable and reliable performance,
small amount of steam consumption,fine applicability and good quality, specially use for not endure high temperature,
combustible,Easy oxidation of temperature under dry paste material, This machine by the user long-term use proved
to be a good drying equipment.
Application arange Rotary Drier :
1. this drier is used for pharmaceutical and foodstuff. as the following raw material.
2. suitable for pulpiness, paste-like mixture or powder raw materials which is with low temperature.
3. raw material is easy to oxidize or explode and have strong irritative or toxic.
4. raw material that need to recover solvent.
Technical data of Rotary Dryer :
| Item | Model | |||||||
| Name | Unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 | ZPG-600 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 | 2800 |
| Demensions in the cylinder | MM | Φ600x1500 | Φ800x1500 | Φ800x2000 | Φ1000x2000 | Φ1000x2600 | Φ1200x2600 | Φ |
| Stirring revolution | rpm | 6-30 stepless variable | ||||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 30 |
| Design pressure of jacket | Mpa | 0.3 | ||||||
| Pressure in the cylinder | Mpa | 0.1-0.15 | ||||||
Vacuum Harrow Dryer Application:
The following raw materials from pharmaceutical industry, foodstuff industry, chemical industry and so on can be dried.
Suitable for pulpiness, paste-like mixture or powder raw materials.
Thermal sensitive raw materials having the requirement to dry at lower temperature.
Raw materials that need to recover solvent.
